High-Temperature Testing Facility

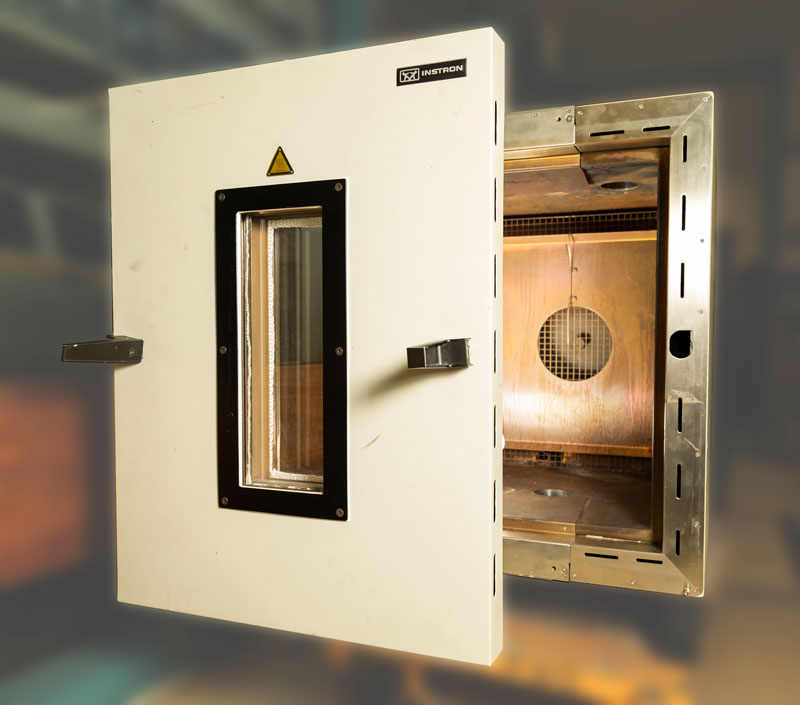

Instron 3119-400 Series Environmental Chamber for Materials Testing

Used for heating/cooling specimens to high/sub-zero temperatures at a given rate with and without loads applied on them.

Features:

  • Hand-held programmable controller
  • Temperature ranges from –150°C to +600°C
  • Optical quality heated window: Designed for use with Extensometers
  • Internal light
  • Versatile Mounting Options: Designed to be mounted onto different load frames in a fixed position
  • Variable speed circulation fan

Instron SF-16 Furnace with Extensometer Port

Used for heating specimens to very high temperatures with and without loads applied on them.

Features:

  • Furnace Temperature range: 300-1200°C
  • Specimen Temperature range: 300-900°C
  • Int. heated size (D x H): 76 x 280 mm
  • Ext. dimensions (D x H): 254 x 330 mm
  • Ceramic fiber insulation: Reducing power consumption and providing fast heat up rate.
  • Zone configuration: 3 zones with 3 different temperature configurations
  • Furnace power: 21 A, 2250 watts max. @ 120VAC, 50/60 Hz. 1ph.

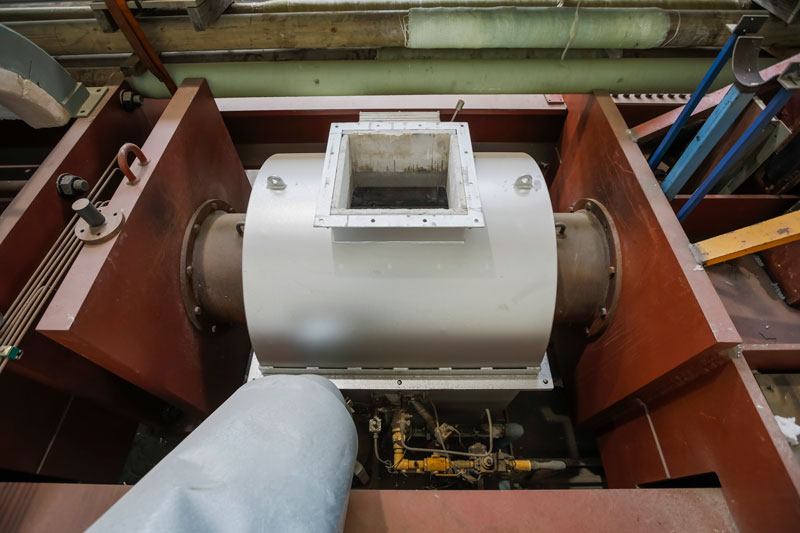

Gas Furnace

Used for fire tests at very high temperatures based on ISO834 standard fire curve with and without loads applied on specimens.

Features:

  • Furnace Temperature up to 1200°C
  • Capable of simulating ISO834 standard fire curve
  • Window for vision: Designed for use with Extensometers
  • Hydraulic jack withstanding up to 500kN pressure
