Materials and Component Testing Equipment

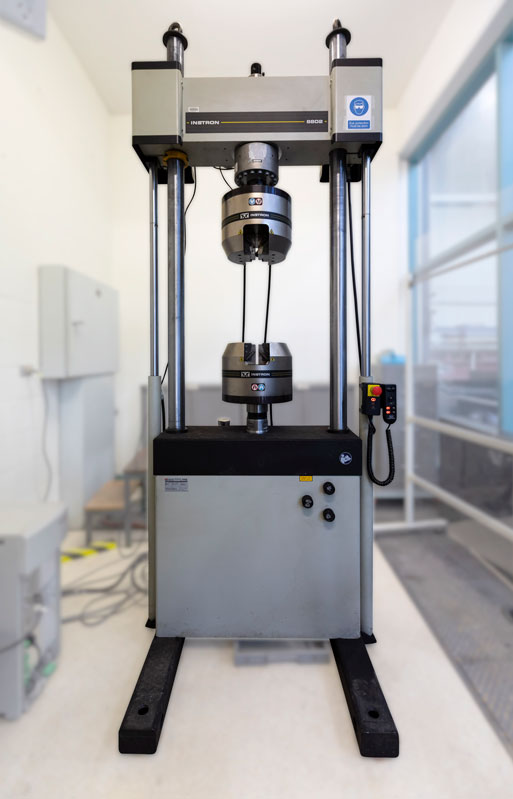

Instron 8802 Fatigue Testing Systems

Instron 8802 Fatigue Testing Systems

Fatigue-rated servohydraulic testing system used for static and dynamic tests.

Features:

  • Up to ±250kN loading capacity
  • Maximum crosshead speed of 150mm/sec
  • High stiffness and precise alignment
  • Suitable for:
    • Simple and advanced cyclic/static materials and component tests
    • High- and low-cycle fatigue tests

Instron 5982 Materials Testing System

Features:

  • Up to ±100kN axial load capacity
  • Integrated digital closed-loop control and data acquisition electronics including crosshead displacement and load measurement channels
  • Crosshead Speed Range: 0.00005 to 1016 mm/min
  • Suitable for:
    • Cyclic/Static materials and component tests

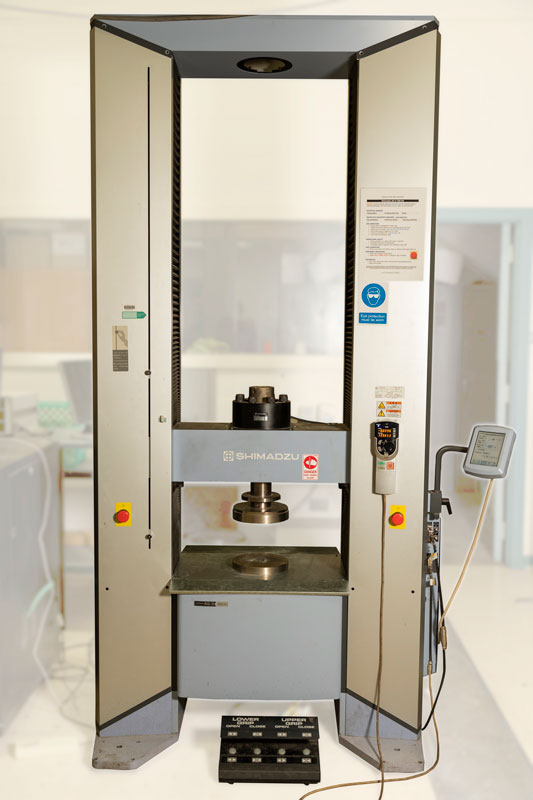

Shimadzu Autograph AGS-X series Universal Test Frame

Used for tension and compression tests.

Features:

  • Up to ±300kN loading capacity
  • Crosshead Speed Range: 0.001 to 500 mm/min
  • Comprehensive Safety Measures
  • Quick Test Setup and Exchange
  • Integrated Operation Panel: Development and storage of different test methods without a computer
  • Suitable for:
    • Cyclic/Static materials and component tests
    • Bending and peeling tests

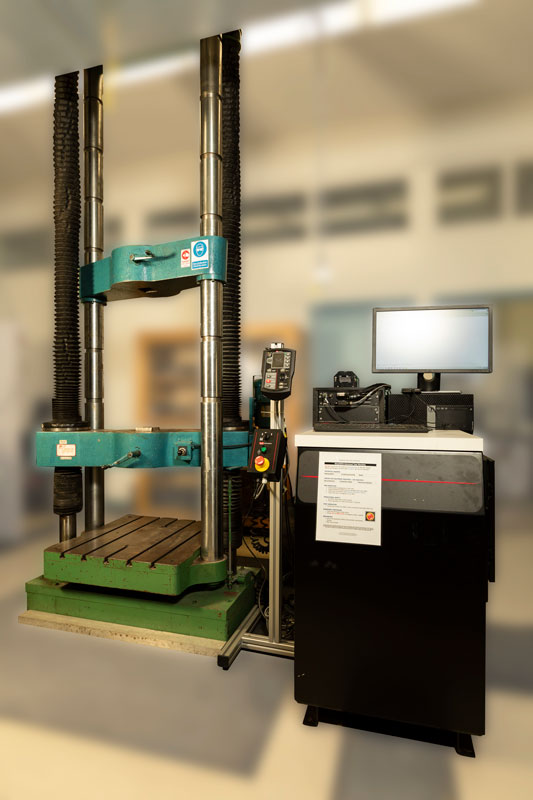

Baldwin Universal Test Machine

Used for tension and compression tests.

Features:

  • Up to ±500kN loading capacity
  • Operated by using Instron Controller and Hydraulic system
  • Suitable for:
    • Static materials and component tests

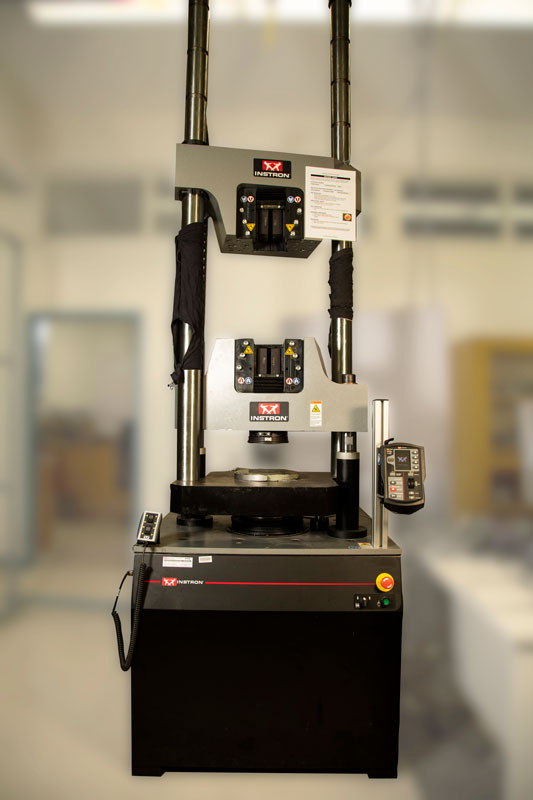

Instron 600DX

Designed for high-capacity tension, compression, bending/flexural, and shear testing.

Features:

  • Up to ±600kN loading capacity
  • Dual test space
  • Single footprint with high-quality materials
  • Suitable for:
    • High-capacity static materials and component tests

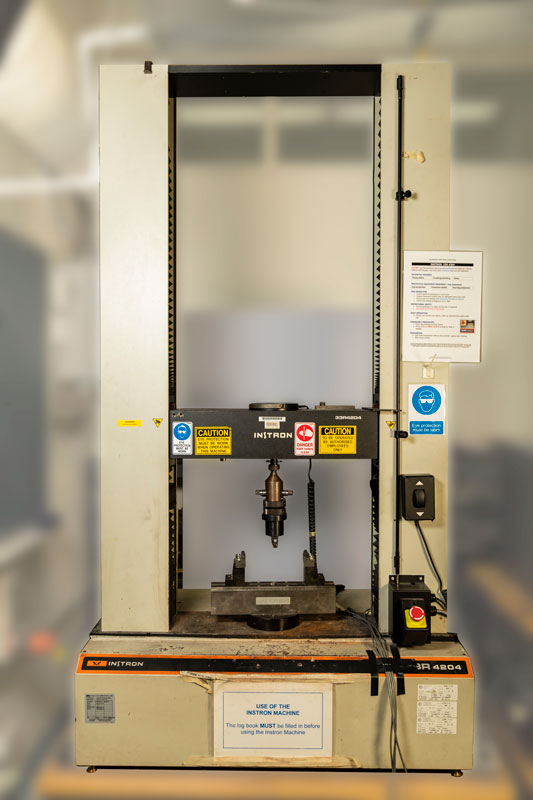

Instron 33R 4204

Used for tension and compression tests

Features:

  • Up to ±50kN loading capacity
  • Crosshead Speed Range: 0.05 to 500 mm/min
  • Maximum crosshead travel: 1.170 meters
  • Suitable for:
    • Cyclic/Static materials and component tests

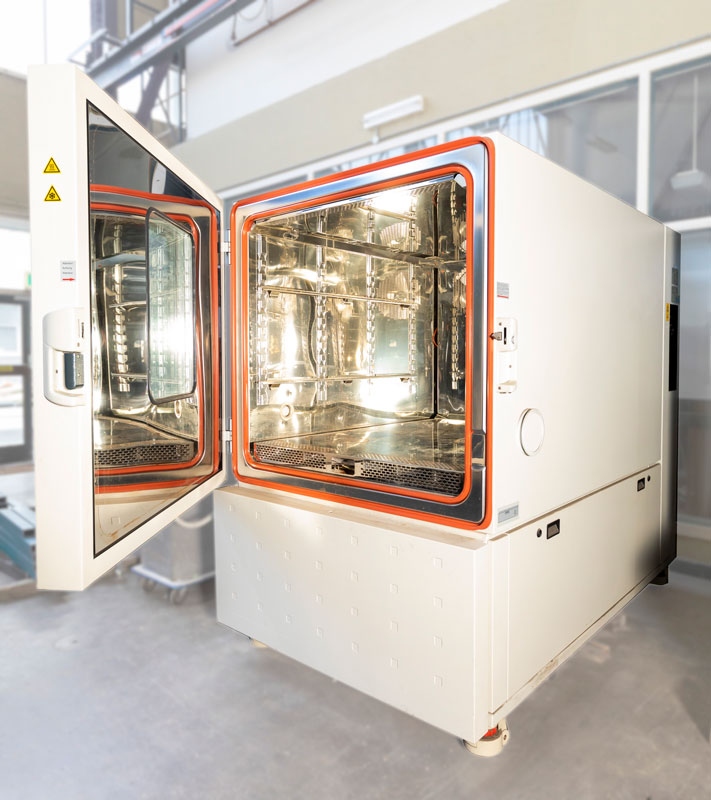

Weiss Environmental Chamber

Used for curing specimens at various environmental conditions.

Features:

  • Temperature range from –85°C to +180°C
  • Humidity range from 0-100%
